PostgreSQL

PostgreSQL install to docker

get image

1
docker pull postgres

create and run

1
2
# create and run (need set port)
docker run -d -p 5432:5432 --name ithome-postgres2 -v D:\app\docker\ithome2\postgres:/var/lib/postgresql/data -e POSTGRES_PASSWORD=pg123456 postgres

command

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
# see version
C:\Users\robertkao>docker exec ithome-postgres2 psql -V
psql (PostgreSQL) 15.1 (Debian 15.1-1.pgdg110+1)

# list DB
C:\Users\robertkao>docker exec ithome-postgres2 psql -U postgres -l
List of databases
Name | Owner | Encoding | Collate | Ctype | ICU Locale | Locale Provider | Access privileges
-----------+----------+----------+------------+------------+------------+-----------------+-----------------------
postgres | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc |
template0 | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc | =c/postgres +
| | | | | | | postgres=CTc/postgres
template1 | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc | =c/postgres +
| | | | | | | postgres=CTc/postgres

# check run
C:\Users\robertkao>docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
3c0bc480497a postgres "docker-entrypoint.s…" 26 minutes ago Up 26 minutes 0.0.0.0:5432->5432/tcp ithome-postgres2
90865204231a dpage/pgadmin4 "/entrypoint.sh" 2 hours ago Up 2 hours 443/tcp, 0.0.0.0:5433->80/tcp pgadmin4

# enter terminal
C:\Users\robertkao>docker exec -it ithome-postgres2 bash
root@20b409f37d30:/#

# ls
root@20b409f37d30:/# ls -l
total 76
drwxr-xr-x 2 root root 4096 Jan 9 00:00 bin
drwxr-xr-x 2 root root 4096 Dec 9 19:15 boot
drwxr-xr-x 5 root root 340 Jan 24 02:26 dev
drwxr-xr-x 2 root root 4096 Jan 11 08:53 docker-entrypoint-initdb.d
drwxr-xr-x 1 root root 4096 Jan 23 14:28 etc
drwxr-xr-x 2 root root 4096 Dec 9 19:15 home
drwxr-xr-x 1 root root 4096 Jan 9 00:00 lib
drwxr-xr-x 2 root root 4096 Jan 9 00:00 lib64
drwxr-xr-x 2 root root 4096 Jan 9 00:00 media
drwxr-xr-x 2 root root 4096 Jan 9 00:00 mnt
drwxr-xr-x 2 root root 4096 Jan 9 00:00 opt
dr-xr-xr-x 260 root root 0 Jan 24 02:26 proc
drwx------ 1 root root 4096 Jan 11 08:53 root
drwxr-xr-x 1 root root 4096 Jan 11 08:53 run
drwxr-xr-x 2 root root 4096 Jan 9 00:00 sbin
drwxr-xr-x 2 root root 4096 Jan 9 00:00 srv
dr-xr-xr-x 11 root root 0 Jan 24 02:26 sys
drwxrwxrwt 1 root root 4096 Jan 11 08:54 tmp
drwxr-xr-x 1 root root 4096 Jan 9 00:00 usr
drwxr-xr-x 1 root root 4096 Jan 9 00:00 var

# enter command line
root@20b409f37d30:/# psql -h localhost -U postgres
psql (15.1 (Debian 15.1-1.pgdg110+1))
Type "help" for help.
postgres=#

# list database
postgres=# \l
List of databases
Name | Owner | Encoding | Collate | Ctype | ICU Locale | Locale Provider | Access privileges
-----------+----------+----------+------------+------------+------------+-----------------+-----------------------
ithome | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc |
postgres | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc |
template0 | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc | =c/postgres +
| | | | | | | postgres=CTc/postgres
template1 | postgres | UTF8 | en_US.utf8 | en_US.utf8 | | libc | =c/postgres +
| | | | | | | postgres=CTc/postgres
(4 rows)


# <<connect to a db>> \c <database_name> <optional: as_user> example: \c database spring_auth
You are now connected to database "ithome" as user "postgres".
ithome=# \c ithome postgres
You are now connected to database "ithome" as user "postgres".
ithome=#

# create table
ithome=# CREATE TABLE leads (id INTEGER PRIMARY KEY, name VARCHAR);
CREATE TABLE

# list table
ithome=# \dt
List of relations
Schema | Name | Type | Owner
--------+-------+-------+----------
public | leads | table | postgres
(1 row)

# show 變數
ithome=# \echo DBNAME
DBNAME
ithome=# \echo :DBNAME
ithome
ithome=# \echo :USER
postgres
ithome=# \echo :HOST
localhost
ithome=# \echo :PORT
5432

management - pgAdmin

install & run pgadmin4

1
2
3
4
# get
docker pull dpage/pgadmin4
# create and run
docker run -d -p 5433:80 --name pgadmin4 -e PGADMIN_DEFAULT_EMAIL=test@123.com -e PGADMIN_DEFAULT_PASSWORD=123456 dpage/pgadmin4

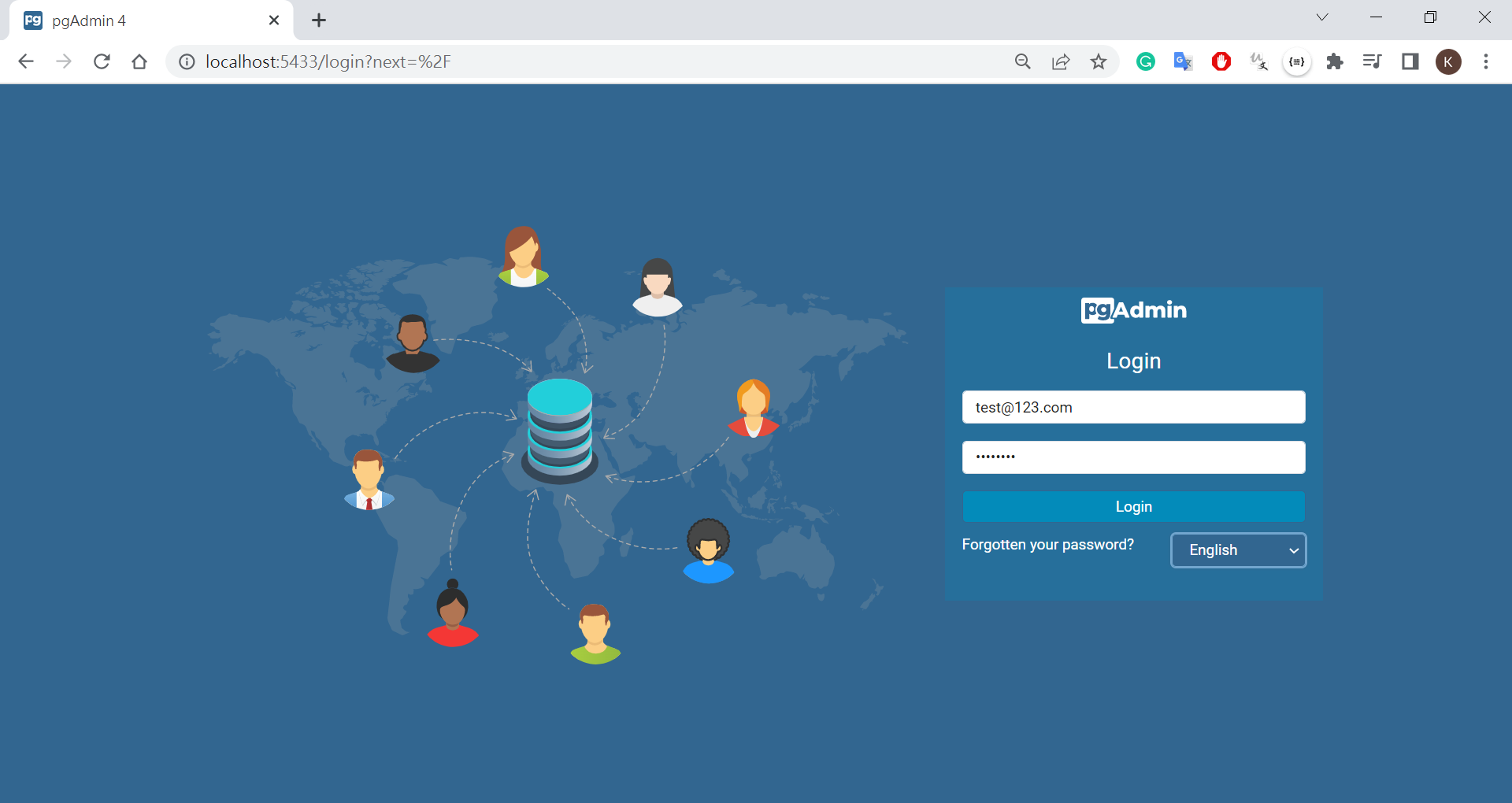

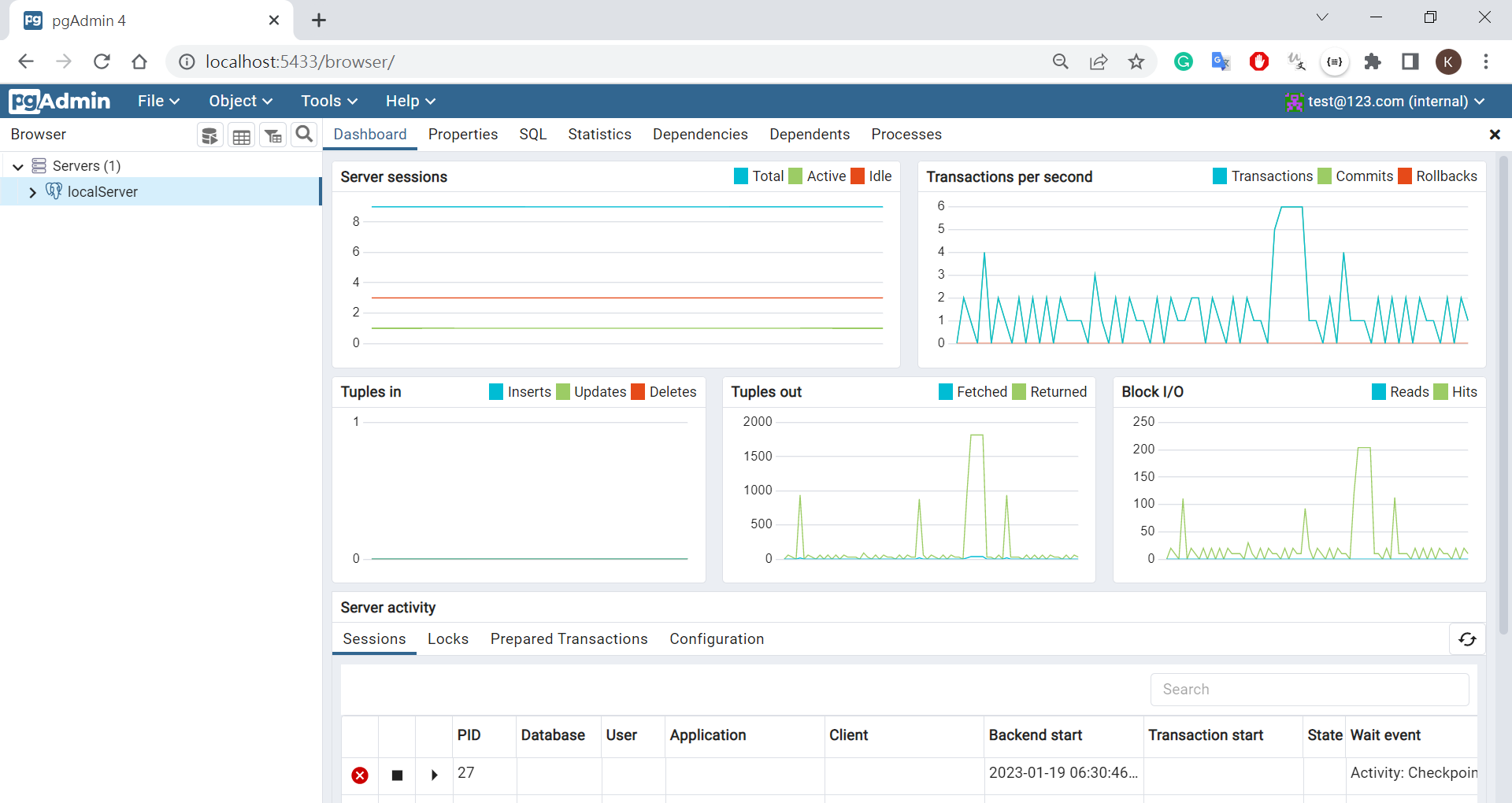

open by browser

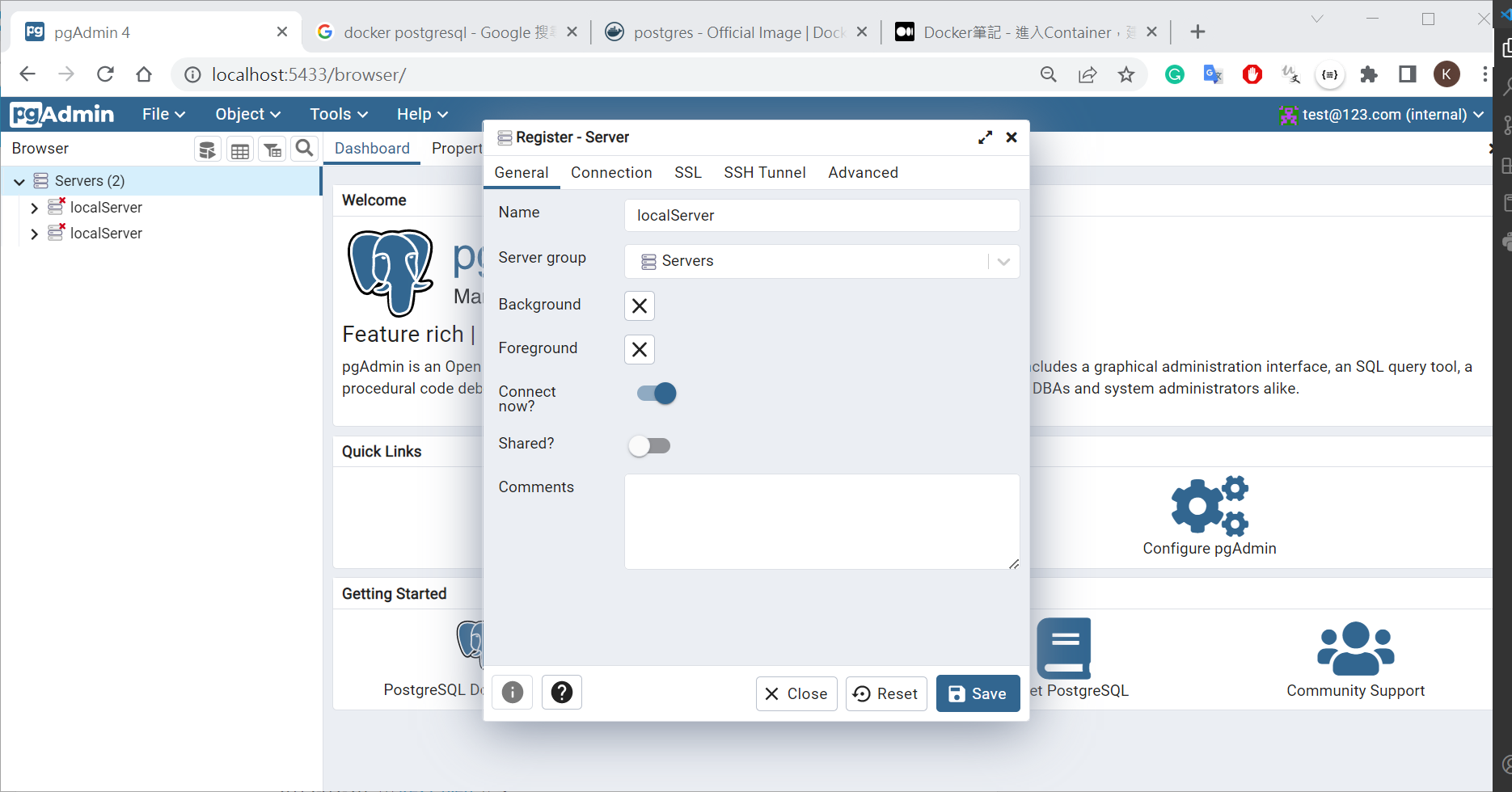

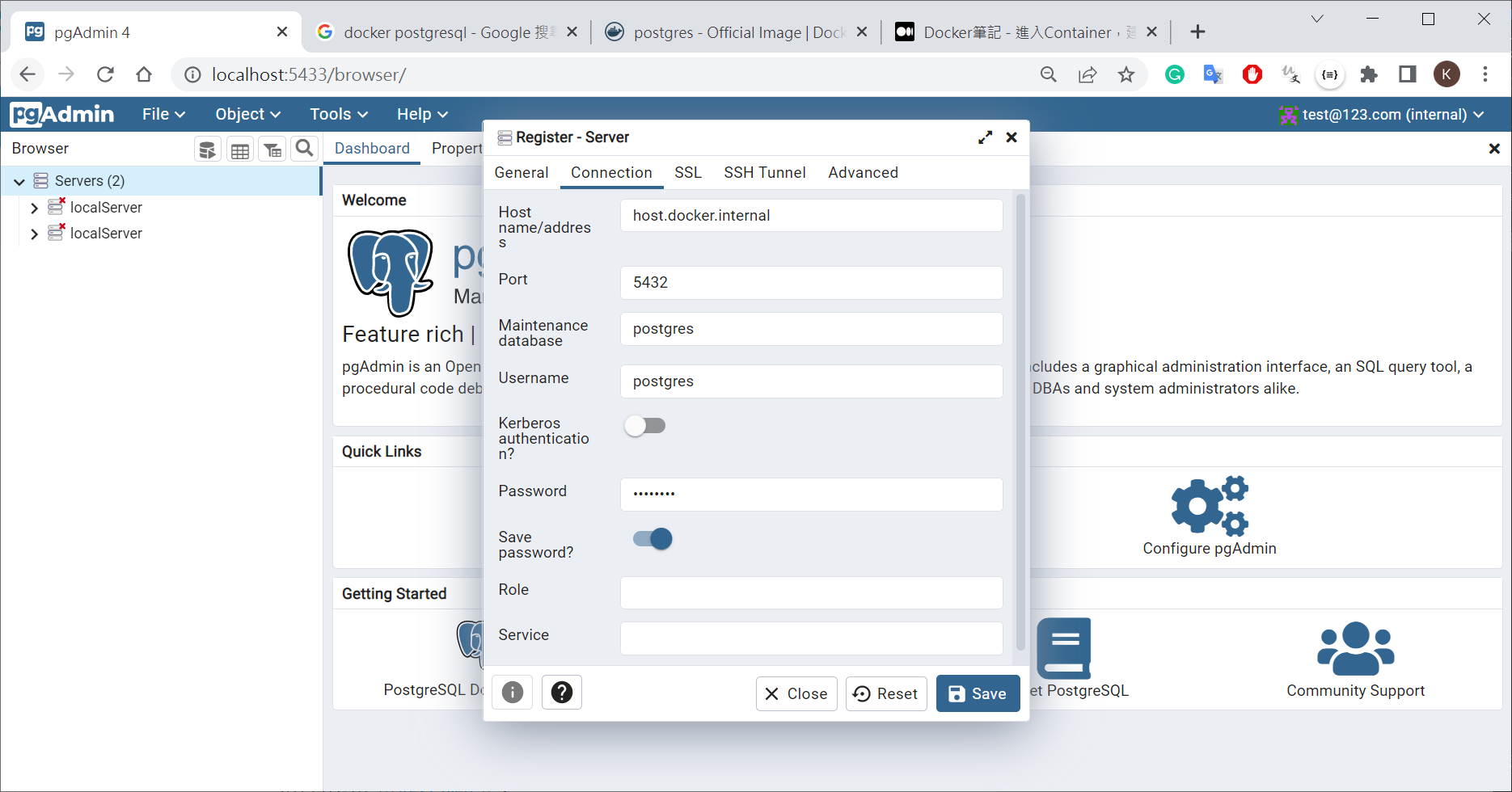

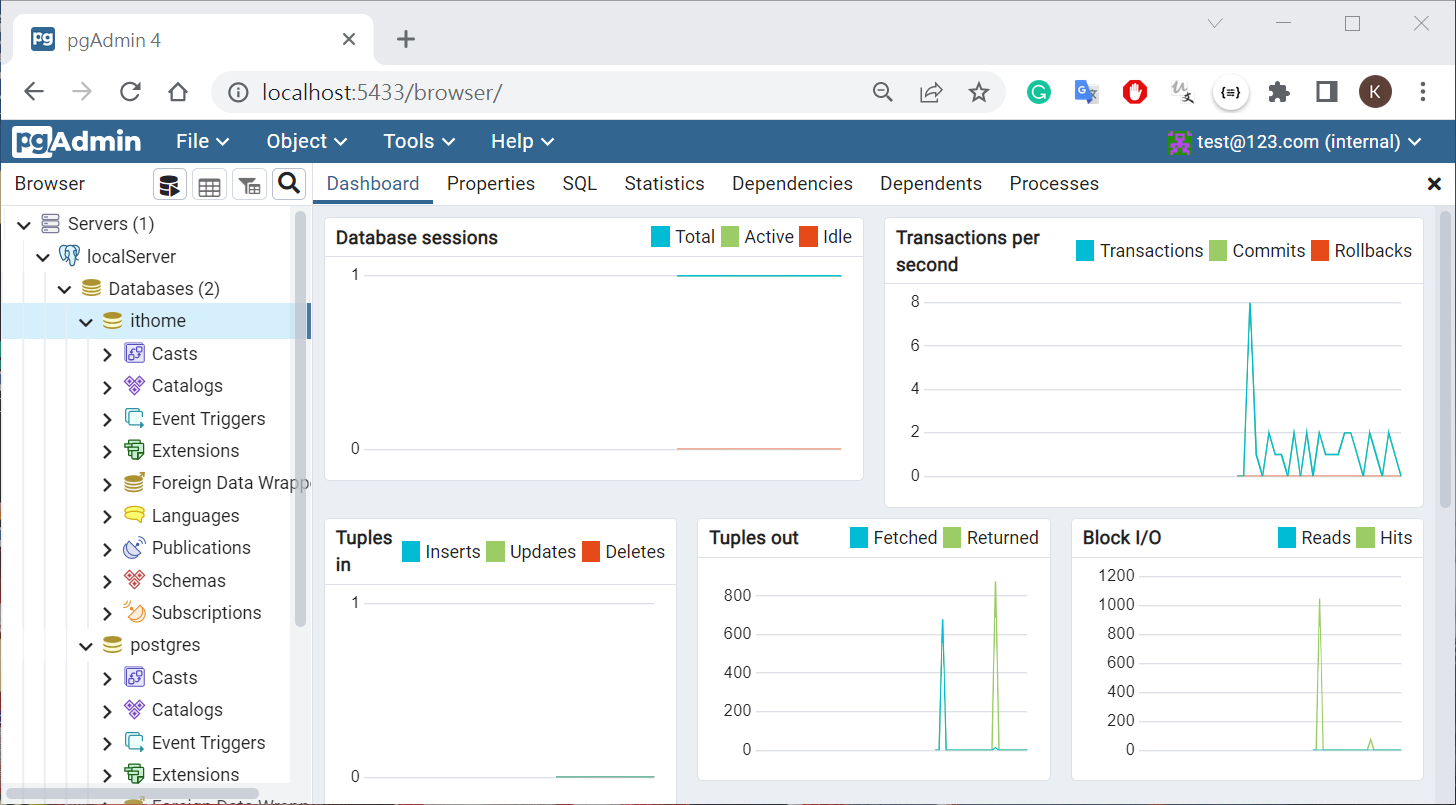

connect to DB

  • address
    • host.docker.internal
    • 127.0.0.1
    • localhost

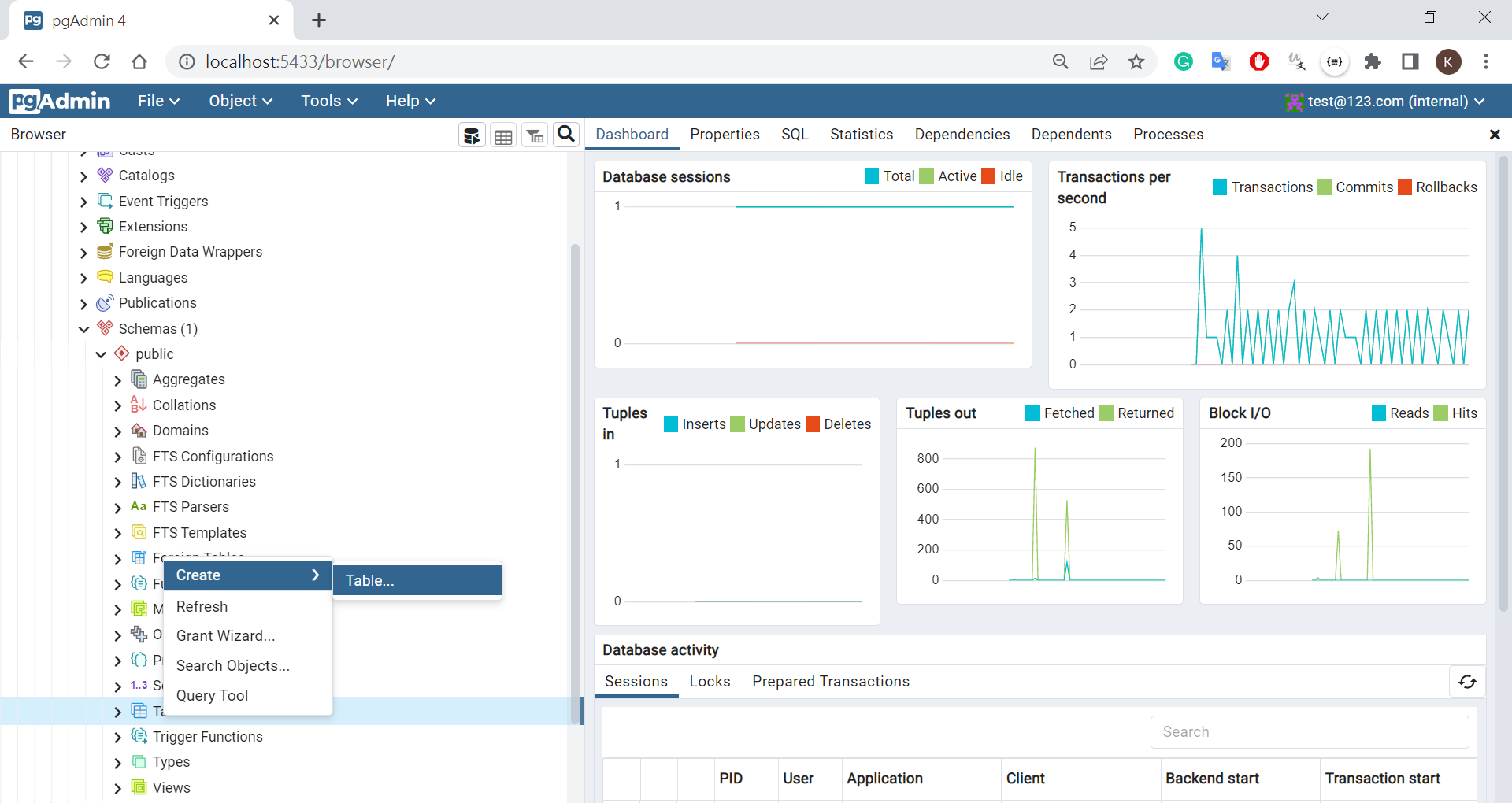

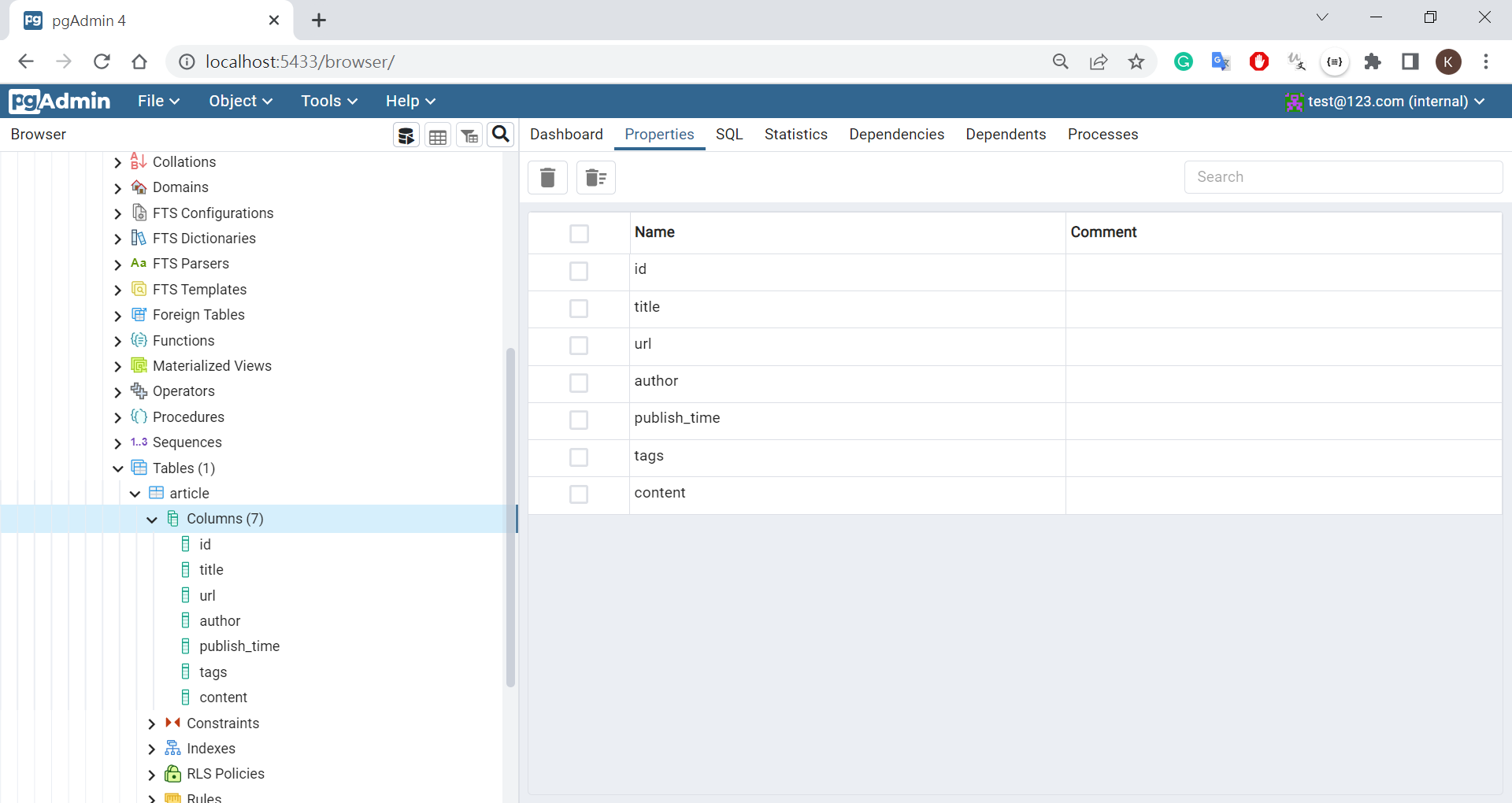

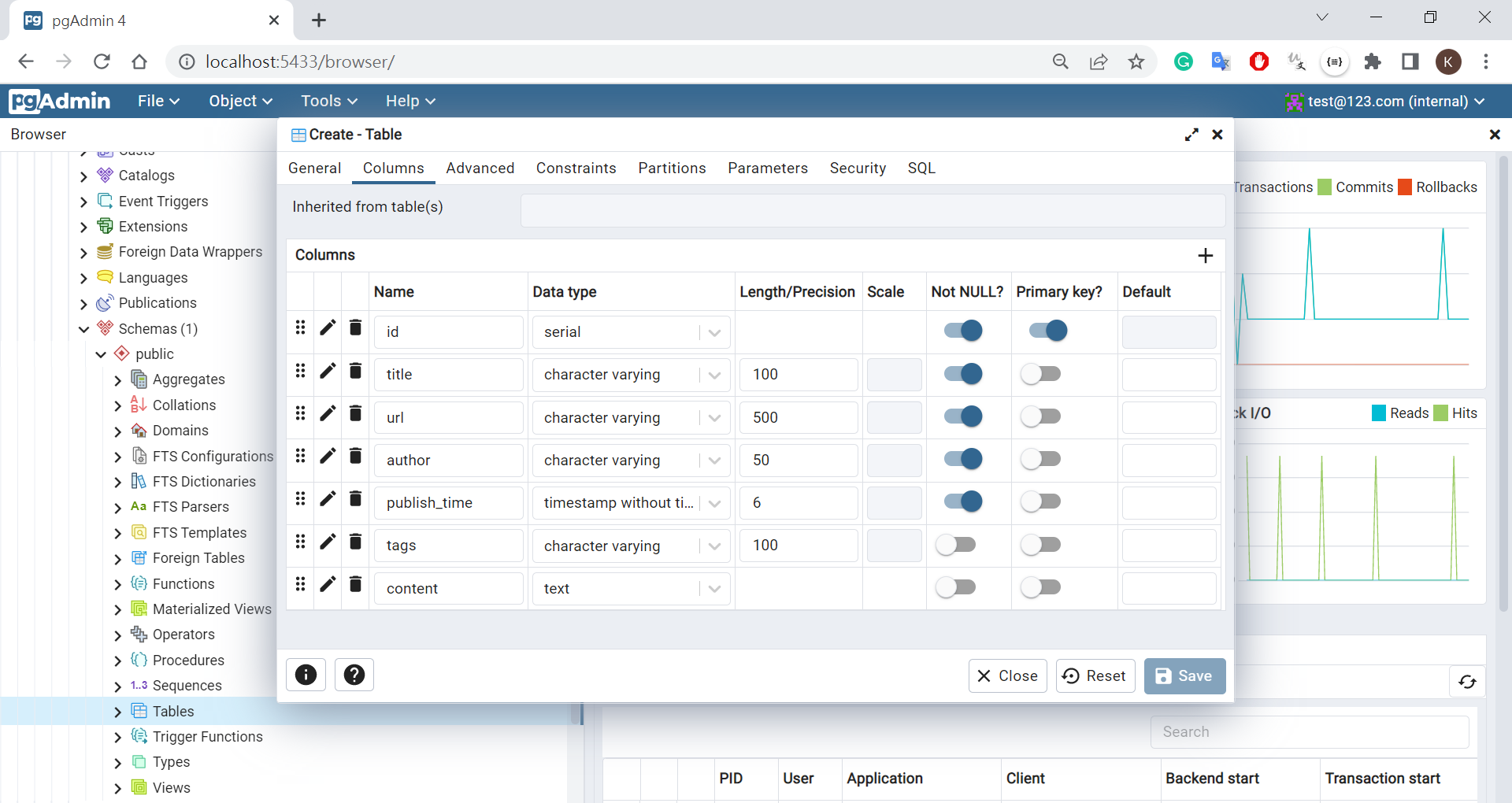

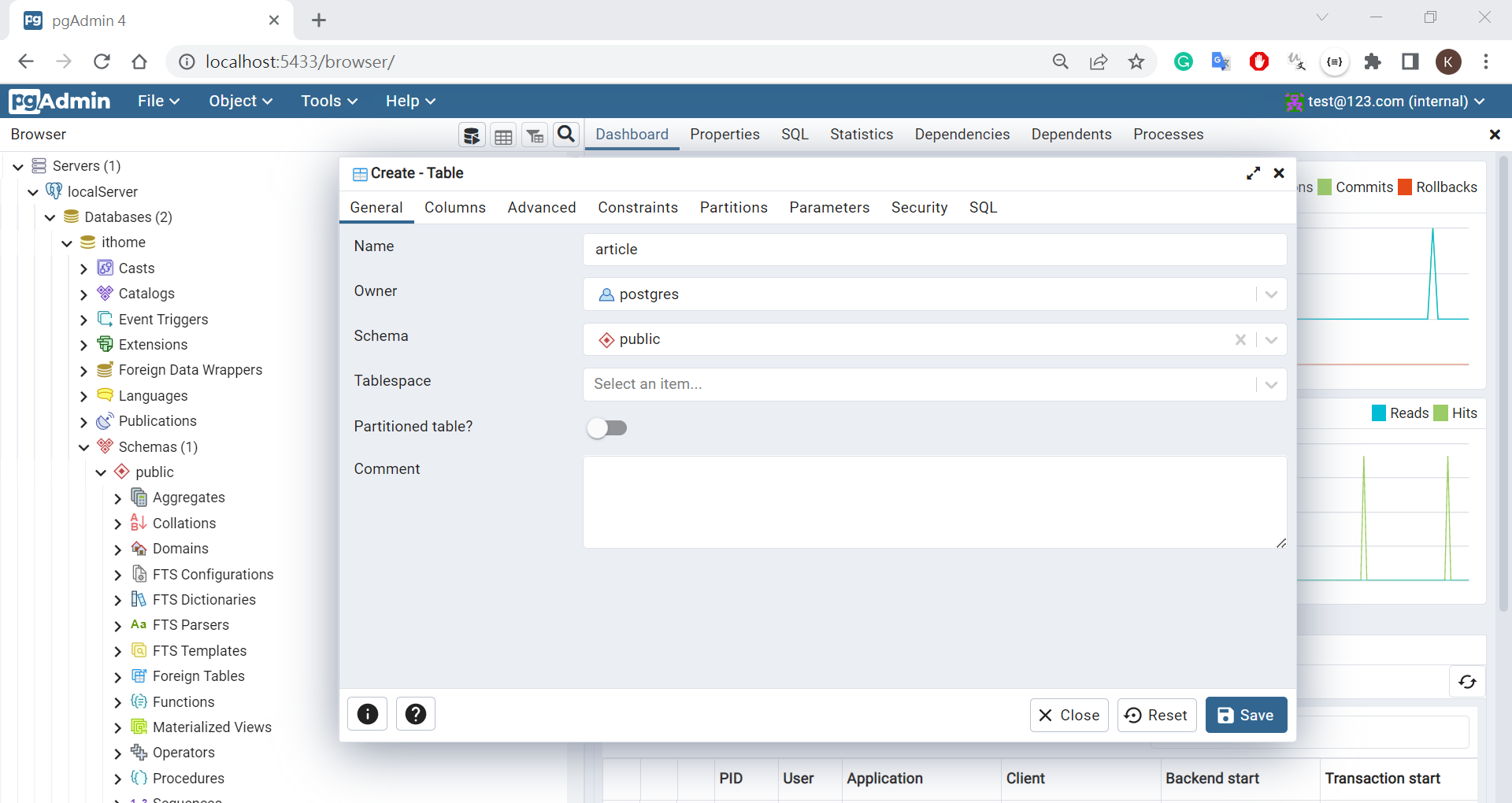

create article table

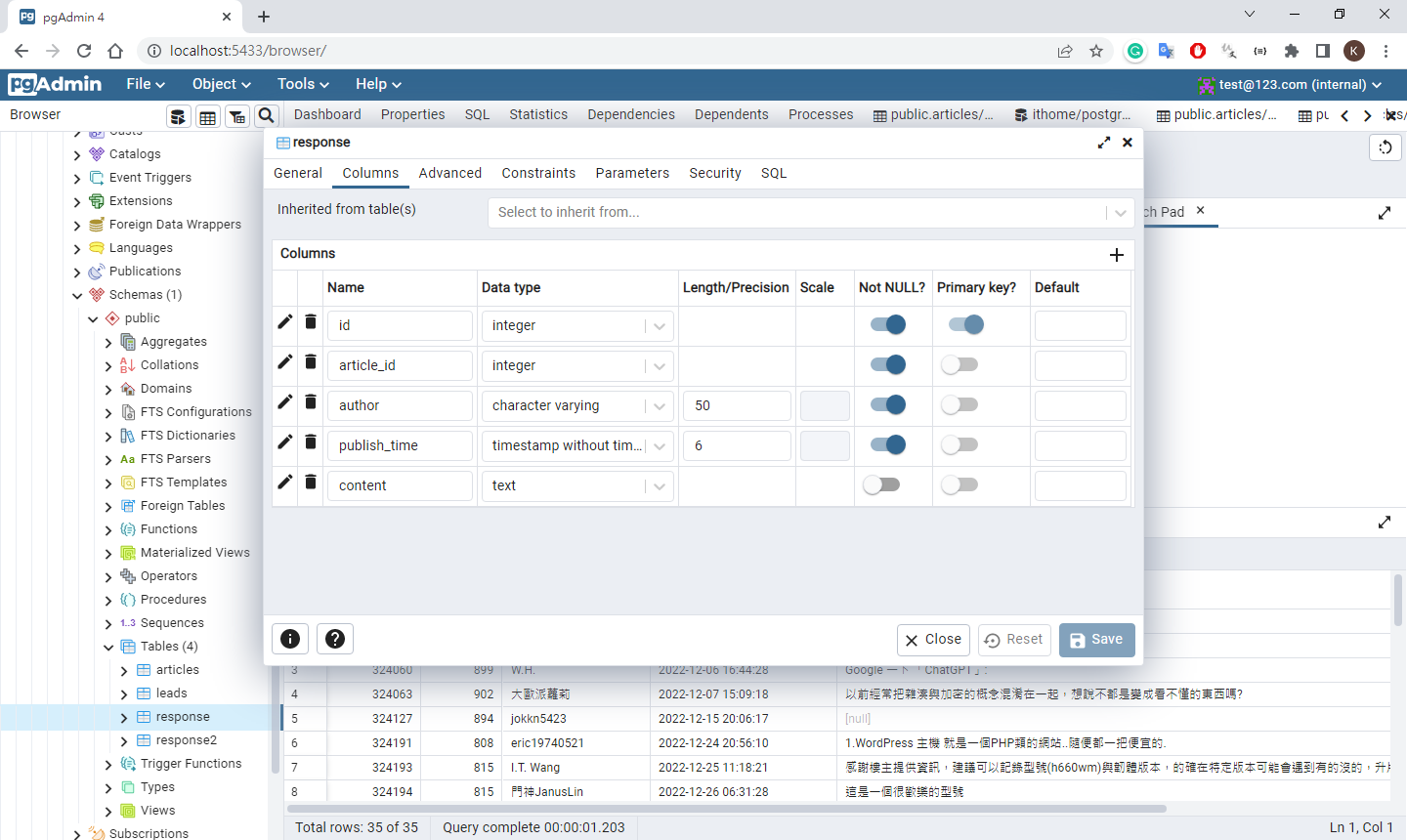

response table

special setting

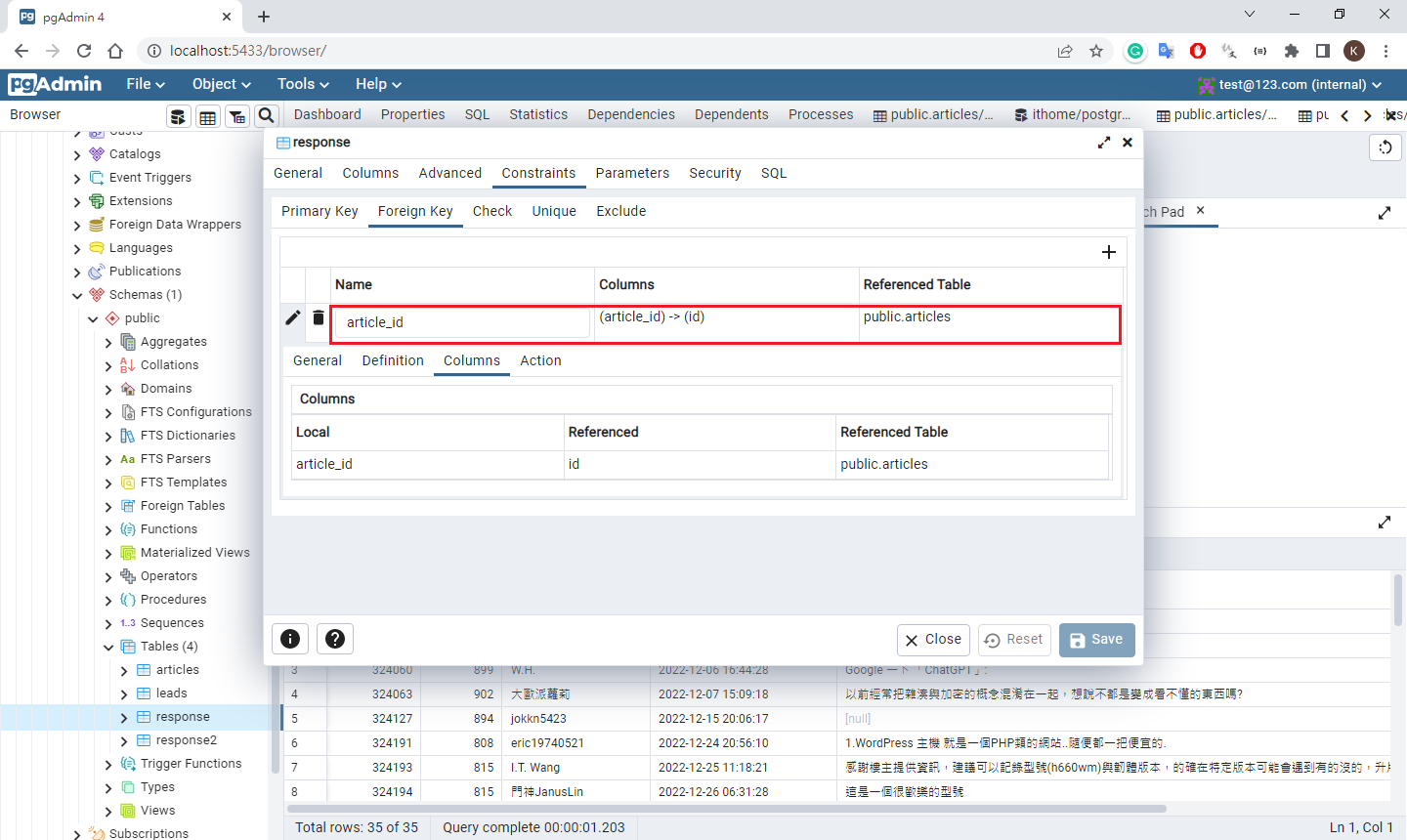

建立一個外來鍵跟原文的關聯

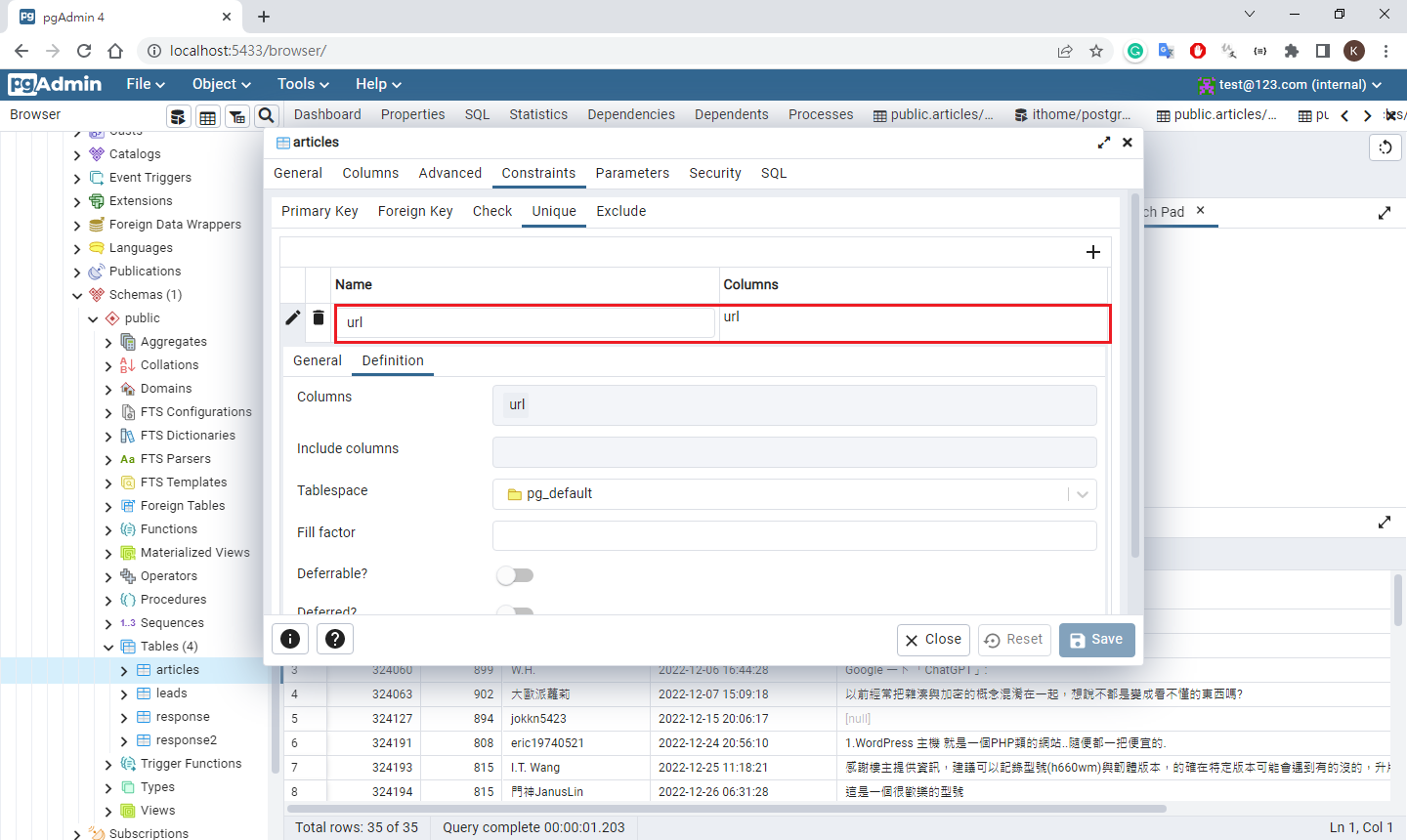

set unique for CONFLICT check field
id change from serial to integer - for manual input id

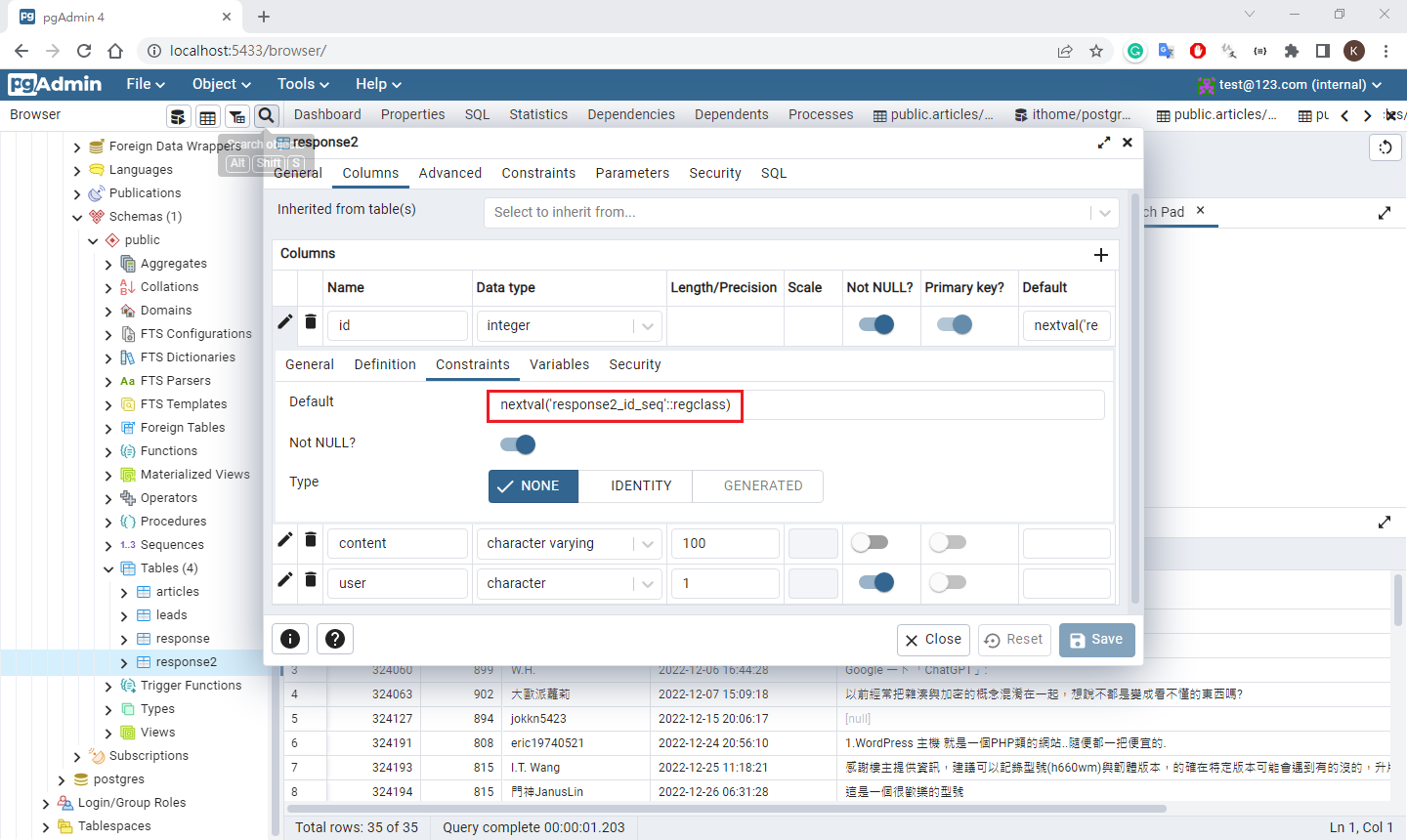

remove Constraints’s Default

access DB

install psycopg2

1
pip install psycopg2

db_access.py - add data

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
import psycopg2
from datetime import datetime
import env

host = 'localhost'
user = env.USER
password = env.PASSWORD
dbname = 'ithome'

conn_sting = f"host={host} user={user} dbname={dbname} password={password}"
conn = psycopg2.connect(conn_sting)
print('資料庫連線成功!')
cursor = conn.cursor()

article = {
'title': '前言3',
'url': 'https://ithelp.ithome.com.tw/articles?tab=tech',
'author': 'Robert',
'publish_time': datetime.now(),
'tags': 'scrapy,postgresql,#3',
'content': 'Test DB3...............'
}

# ok command 1
# postgres_insert_query = '''
# INSERT INTO articles(title, url, author, publish_time, tags, content)
# VALUES (%s, %s ,%s, %s, %s, %s)
# '''
# cursor.execute(postgres_insert_query, (article['title'], article['url'], article['author'], article['publish_time'], article['tags'], article['content']) )

# ok command 2
cursor.execute("""
INSERT INTO articles(title, url, author, publish_time, tags, content)
VALUES (%(title)s, %(url)s, %(author)s, %(publish_time)s, %(tags)s, %(content)s);
""",
article)


print('資料新增成功!')

conn.commit()
cursor.close()
conn.close()

run

1
2
3
(myenv10_scrapy) D:\work\git\python_crawler\109-scrapy-practice2\ithome\ithome>python db_access.py
資料庫連線成功!
資料新增成功!

show DB

SQL command

delete row

1
DELETE FROM articles WHERE id>3

query table

1
2
3
SELECT * FROM public.articles ORDER BY id ASC

SELECT * FROM articles ORDER BY id ASC

python code

insert

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
article = {
'title': item.get('title'),
'url': item.get('url'),
'author': item.get('author'),
'publish_time': item.get('publish_time'),
'tags': item.get('tags'),
'content': item.get('content'),
'view_count': item.get('view_count')
}
self.cursor.execute("""
INSERT INTO articles(title, url, author, publish_time, tags, content, view_count)
VALUES (%(title)s, %(url)s, %(author)s, %(publish_time)s, %(tags)s, %(content)s, %(view_count)s);
""",
article)

response = {
'id': article_response['resp_id'],
'article_id': article_id,
'author': article_response['author'],
'publish_time': article_response['publish_time'],
'content': article_response['content'],
}
self.cursor.execute("""
INSERT INTO public.response(article_id, author, publish_time, content)
VALUES (%(article_id)s,%(author)s,%(publish_time)s,%(content)s);
""",
response)

insert update if exist

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# current_timestamp : SQL current time
self.cursor.execute("""
INSERT INTO articles(title, url, author, publish_time, tags, content, view_count)
VALUES (%(title)s, %(url)s, %(author)s, %(publish_time)s, %(tags)s, %(content)s, %(view_count)s)
ON CONFLICT(url)
DO UPDATE SET title=%(title)s,
tags=%(tags)s,
content=%(content)s,
update_time=current_timestamp
RETURNING id;
""",
article)

self.cursor.execute("""
INSERT INTO public.response(id, article_id, author, publish_time, content)
VALUES (%(id)s, %(article_id)s ,%(author)s, %(publish_time)s, %(content)s)
ON CONFLICT(id) DO UPDATE
SET content=%(content)s;
""",
response)

IT邦幫忙

settings.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
# 'ithome.middlewares.IthomeSpiderMiddleware': 543,
#}
SPIDER_MIDDLEWARES = {
'scrapy_splash.SplashDeduplicateArgsMiddleware': 100,
}

DUPEFILTER_CLASS = 'scrapy_splash.SplashAwareDupeFilter'

# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#DOWNLOADER_MIDDLEWARES = {
# 'ithome.middlewares.IthomeDownloaderMiddleware': 543,
#}
DOWNLOADER_MIDDLEWARES = {
'scrapy_splash.SplashCookiesMiddleware': 723,
'scrapy_splash.SplashMiddleware': 725,


# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
#ITEM_PIPELINES = {
# 'ithome.pipelines.IthomePipeline': 300,
#}
ITEM_PIPELINES = {
'ithome.pipelines.PostgreSqlPipeline': 300,
}

SPLASH_URL = 'http://localhost:8050'

pipelines.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
# useful for handling different item types with a single interface
from itemadapter import ItemAdapter
import psycopg2
# import env


class IthomePipeline:
def process_item(self, item, spider):
return item

class PostgreSqlPipeline:
def open_spider(self, spider):
USER = 'postgres'
PASSWORD = 'pg123456'
host = 'localhost'
user = USER
password = PASSWORD
dbname = 'ithome'
conn_sting = f"host={host} user={user} dbname={dbname} password={password}"

self.conn = psycopg2.connect(conn_sting)
print('資料庫連線成功!')
self.cursor = self.conn.cursor()

def close_spider(self, spider):
self.cursor.close()
self.conn.close()

def process_item(self, item, spider):
article = {
'title': item.get('title'),
'url': item.get('url'),
'author': item.get('author'),
'publish_time': item.get('publish_time'),
'tags': item.get('tags'),
'content': item.get('content'),
'view_count': item.get('view_count')
}

# direct update
# self.cursor.execute("""
# INSERT INTO articles(title, url, author, publish_time, tags, content, view_count)
# VALUES (%(title)s, %(url)s, %(author)s, %(publish_time)s, %(tags)s, %(content)s, %(view_count)s);
# """,
# article)

# check update
# current_timestamp : SQL current time
self.cursor.execute("""
INSERT INTO articles(title, url, author, publish_time, tags, content, view_count)
VALUES (%(title)s, %(url)s, %(author)s, %(publish_time)s, %(tags)s, %(content)s, %(view_count)s)
ON CONFLICT(url)
DO UPDATE SET title=%(title)s,
tags=%(tags)s,
content=%(content)s,
update_time=current_timestamp
RETURNING id;
""",
article)
self.conn.commit()
article_id = self.cursor.fetchone()[0]

article_responses = item.get('responses')
for article_response in article_responses:
response = {
'id': article_response['resp_id'],
'article_id': article_id,
'author': article_response['author'],
'publish_time': article_response['publish_time'],
'content': article_response['content'],
}

# direct update
# self.cursor.execute("""
# INSERT INTO public.response(article_id, author, publish_time, content)
# VALUES (%(article_id)s,%(author)s,%(publish_time)s,%(content)s);
# """,
# response)

# check exist
self.cursor.execute("""
INSERT INTO public.response(id, article_id, author, publish_time, content)
VALUES (%(id)s, %(article_id)s ,%(author)s, %(publish_time)s, %(content)s)
ON CONFLICT(id) DO UPDATE
SET content=%(content)s;
""",
response)
self.conn.commit()

# print(f"{item.get('index')}資料新增成功!")
return item

articles.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
import scrapy
from scrapy_splash import SplashRequest
from bs4 import BeautifulSoup
from datetime import datetime


class ArticlesSpider(scrapy.Spider):
name = 'articles'
allowed_domains = ['ithelp.ithome.com.tw']
index = 0
page_index = 1
MAX_PAGE = 10
URL_1ST = 'https://ithelp.ithome.com.tw/articles?tab=tech'

script = '''
function main(splash, args)
assert(splash:go(args.url))
assert(splash:wait(2))

return splash:html()
end
'''

def start_requests(self):
yield SplashRequest(url=self.URL_1ST, callback=self.parse, endpoint="execute",
args={
'lua_source': self.script
})


def parse(self, response):
articles = response.xpath("//div[@class='board tabs-content']/div[@class='qa-list']")
for article in articles:
# yield {
# 'url': article.xpath(".//a[@class='qa-list__title-link']/@href").get(),
# 'title': article.xpath(".//a[@class='qa-list__title-link']/text()").get(),
# 'author': article.xpath("normalize-space(.//a[@class='qa-list__info-link']/text())").get(),
# 'publish_time': article.xpath(".//a[@class='qa-list__info-time']/@title").get(),
# # 'tags': article.xpath(".//a[@class='qa-list__title-link']/@href").get(),
# 'content': article.xpath("normalize-space(.//p[@class='qa-list__desc']/text())").get(),
# 'view_count': article.xpath("(.//span[@class='qa-condition__count'])[3]/text()").get(),
# }
article_date_str = article.xpath(".//a[@class='qa-list__info-time']/@title").get()
article_date = datetime.strptime(article_date_str, '%Y-%m-%d %H:%M:%S')

url = article.xpath(".//a[@class='qa-list__title-link']/@href").get()
yield SplashRequest(url=url, callback=self.article_parse, endpoint="execute",
meta = {
'url': article.xpath(".//a[@class='qa-list__title-link']/@href").get(),
'author': article.xpath("normalize-space(.//a[@class='qa-list__info-link']/text())").get(),
'publish_time': article_date,
'view_count': int(article.xpath("(.//span[@class='qa-condition__count'])[3]/text()").get()),
},
args={
'lua_source': self.script
})

self.page_index += 1
if self.page_index <= self.MAX_PAGE:
url = f'{self.URL_1ST}&page={self.page_index}'
yield SplashRequest(url=url, callback=self.parse, endpoint="execute",
args={
'lua_source': self.script
})

def article_parse(self, response):
tags_list= response.xpath("//a[@class='tag qa-header__tagList']/text()").getall()
tags= ','.join(tags_list)
content_html = response.xpath("//div[@class='markdown__style']").get()
soup= ''
content=''

self.index +=1
try:
soup = BeautifulSoup(content_html, "html.parser")
content = soup.get_text()
except:
print(f"{self.index}---------------->")

content = self.content_alignment(content)
article_responses = []
# item_responses = response.xpath("//div[@class='ans-header']")
# for item_response in item_responses:
# resp_date_str = item_response.xpath(".//a[@class='ans-header__time']/text()").get()
# resp_date = datetime.strptime(resp_date_str, '%Y-%m-%d %H:%M:%S')
# resp_content = item_response.xpath(".//parent::node()/div[@class='response-markdown']/div/div/p/text()").get()
# resp_content = self.content_alignment(resp_content)
# article_responses.append({
# 'author': item_response.xpath(".//a[@class='response-header__person']/text()").get(),
# 'content': resp_content,
# 'publish_time': resp_date
# })

item_responses = response.xpath("//div[@class='qa-panel response clearfix']")
for item_response in item_responses:
resp_date_str = item_response.xpath(".//a[@class='ans-header__time']/text()").get()
resp_date = datetime.strptime(resp_date_str, '%Y-%m-%d %H:%M:%S')
resp_content = item_response.xpath(".//div[@class='response-markdown']/div/div/p/text()").get()
resp_id = int(item_response.xpath(".//a/@name").get().replace("response-", ""))
article_responses.append({
'resp_id': resp_id,
'author': item_response.xpath(".//a[@class='response-header__person']/text()").get(),
'content': resp_content,
'publish_time': resp_date
})
yield {
'index': self.index,
'url': response.request.meta['url'],
'author': response.request.meta['author'],
'publish_time': response.request.meta['publish_time'],
'view_count': response.request.meta['view_count'],
'title': response.xpath("normalize-space(//h2[@class='qa-header__title']/text())").get(),
'tags': tags,
'content': content,
'responses': article_responses
}

def content_alignment(self, content):
# break into lines and remove leading and trailing space on each
# lines = (line.strip() for line in text.splitlines())
# break multi-headlines into a line each
# chunks = (phrase.strip() for line in lines for phrase in line.split(" "))
# drop blank lines
# content = '\n'.join(chunk for chunk in chunks if chunk)

# break into lines and remove leading and trailing space on each
lines = (line.strip() for line in content.splitlines())
# drop blank lines
content = '\n'.join(line for line in lines if line)

return content

run

1
(myenv10_scrapy) D:\work\git\python_crawler\109-scrapy-practice2\ithome>scrapy crawl articles

Ref
