Flutter - MiCard

發表於 更新於 分類於 Disqus：
文章字數： 10k 所需閱讀時間 ≈ 9 分鐘

snippets

1
2
3
4
5
6
stle : StatelessWidget
stf : StatefulWidget
flo : floatingActionButton --> , value: FAB --> floatingActionButton

Ctrl+J : shwo quickly docs
Container/Row(option/Alt enter) : select widget(wrap widget), then chenge widget to SaftArea/Padding

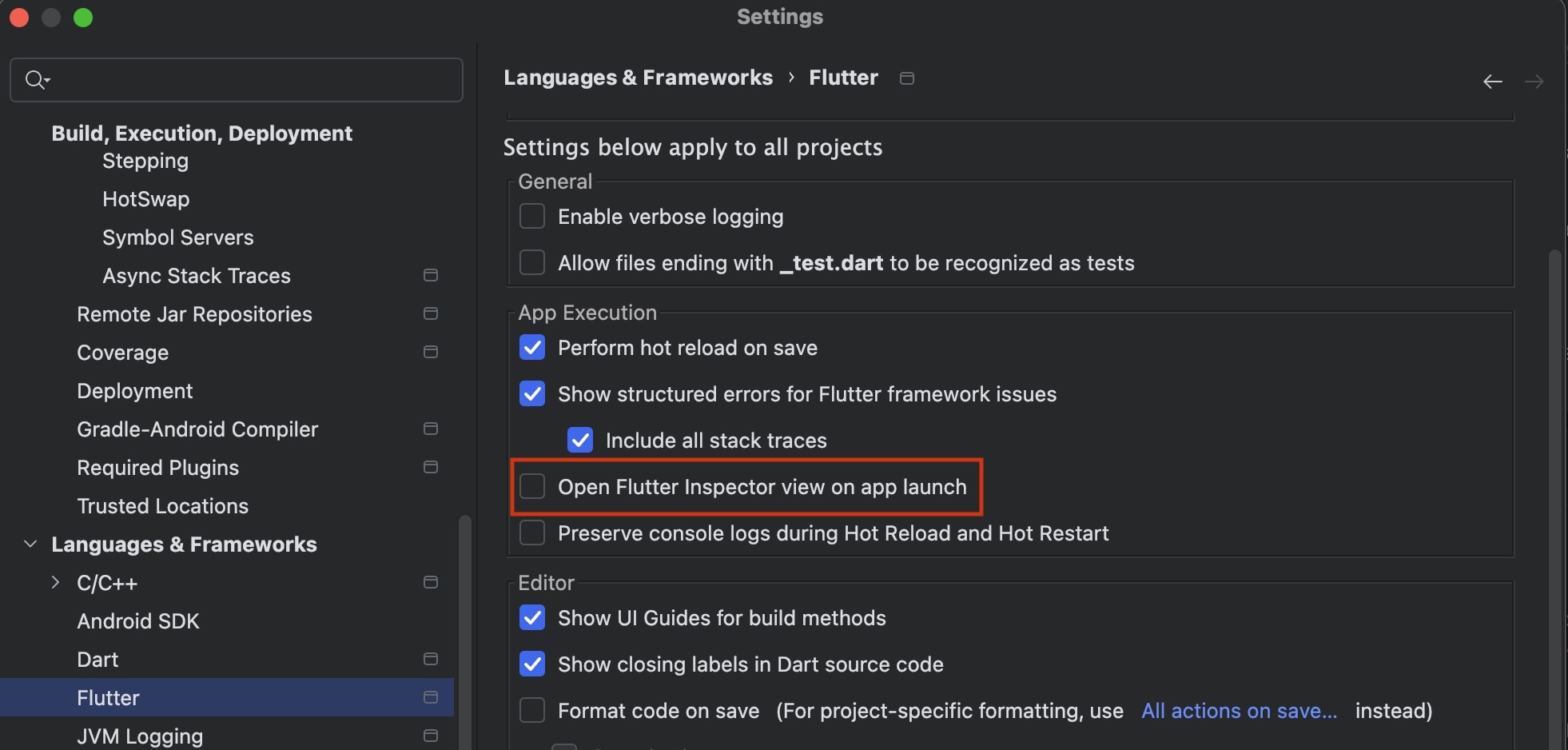

setting

Flutter Inspector

clone from github

  • File -> New -> Project from Version Control –> press the “github link”
    因版本差異有時有執行困難
  • New project : File -> New -> New Flutter Project

Hot Reload and Hot Restar

  • hot reload : press lighting or save file
  • hot restart : press blue block

change to Stateless wedget

main.dart - original
1
2
3
4
5
6
7
8
9
10
void main() {
  runApp(
    MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.red,
        body: Container(),
      ),
    ),
  );
}
main.dart - add stateless widget
  • press hot reload button then update change
  • save file automtic trigger hot reload
  • just update change, so react so quickly
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    void main() {
      runApp(
        MyApp()
      );
    }

    class MyApp extends StatelessWidget {
      const MyApp({super.key});

      @override
      Widget build(BuildContext context) {
        return MaterialApp(
          home: Scaffold(
            backgroundColor: Colors.white,
            body: Container(),
          ),
        );
      }
    }

donuts count

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
void main() {
  runApp(MaterialApp(
      home: MainPage(),
  ));
}

class MainPage extends StatefulWidget {
  _MainPageState createState() => _MainPageState();
}

class _MainPageState extends State<MainPage> {
  int nDonuts = 0;
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar:AppBar(
        backgroundColor: Colors.blue,
        title: Text("Demo"),
      ),
      body: Center(
        // child: Text("My name is Robert."),
        child: Text(
          "Number of Donuts eaten: $nDonuts",
          style: TextStyle(
            fontSize: 40.0,
          ),
        )),
      floatingActionButton: FloatingActionButton(
        backgroundColor: Colors.red,
        child: Icon(Icons.add),
        onPressed: () {
          setState(() {
            nDonuts++;
          });
          // print("Floating Action Button Clicked!");
        }
      ),
    );
  }
}

Container

single-child

Container(option/Alt enter) -> widget(wrap widget), then chenge widget to SaftArea(put cantain at Safe Area)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
void main() {
  runApp(
      MyApp()
  );
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          child: Container(
            // kyp: set size, margin, padding
            height: 100.0,
            width: 100.0,
            // margin: EdgeInsets.all(20.0),
            // margin: EdgeInsets.symmetric(vertical: 50.0, horizontal: 10.0),
            // margin: EdgeInsets.fromLTRB(30.0, 10.0, 50.0, 20.0),
            margin: EdgeInsets.only(left: 30.0),
            padding: EdgeInsets.all(20.0),
            color: Colors.white,
            child:Text("Hello"),
          ),
        ),
    );
      ),
  }
}

Multi-child layout widgets

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          // child: Column(
          child: Row(
            // kyp: limit by minimum
            // mainAxisSize: MainAxisSize.min,
            // kyp: bottom up(down is default
            // verticalDirection: VerticalDirection.up,
            // kyp: alignment position
            // mainAxisAlignment: MainAxisAlignment.end,
            // mainAxisAlignment: MainAxisAlignment.center,
            // mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            // kyp: horizontal (container width must different)
            // crossAxisAlignment: CrossAxisAlignment.end,
            // kyp: stretch child(container width don't need
            crossAxisAlignment: CrossAxisAlignment.stretch,
            children: [
              Container(
                height: 100.0,
                width: 100.0,
                color: Colors.white,
                child:Text("Container 1"),
              ),
              // kyp: add 2 container space
              SizedBox(height:20.0),
              Container(
                width: 100.0,
                height: 100.0,
                color: Colors.blue,
                child: Text("Container 2")
              ),
              Container(
                  width:100.0,
                  height: 100.0,
                  color: Colors.red,
                  child: Text("Container 3")
              ),
              // Container(
              //   width: double.infinity,
              //   height: 10.0,
              //   color: Colors.yellow,
              // ),
            ],
          ),
        ),
      ),
    );
  }
}

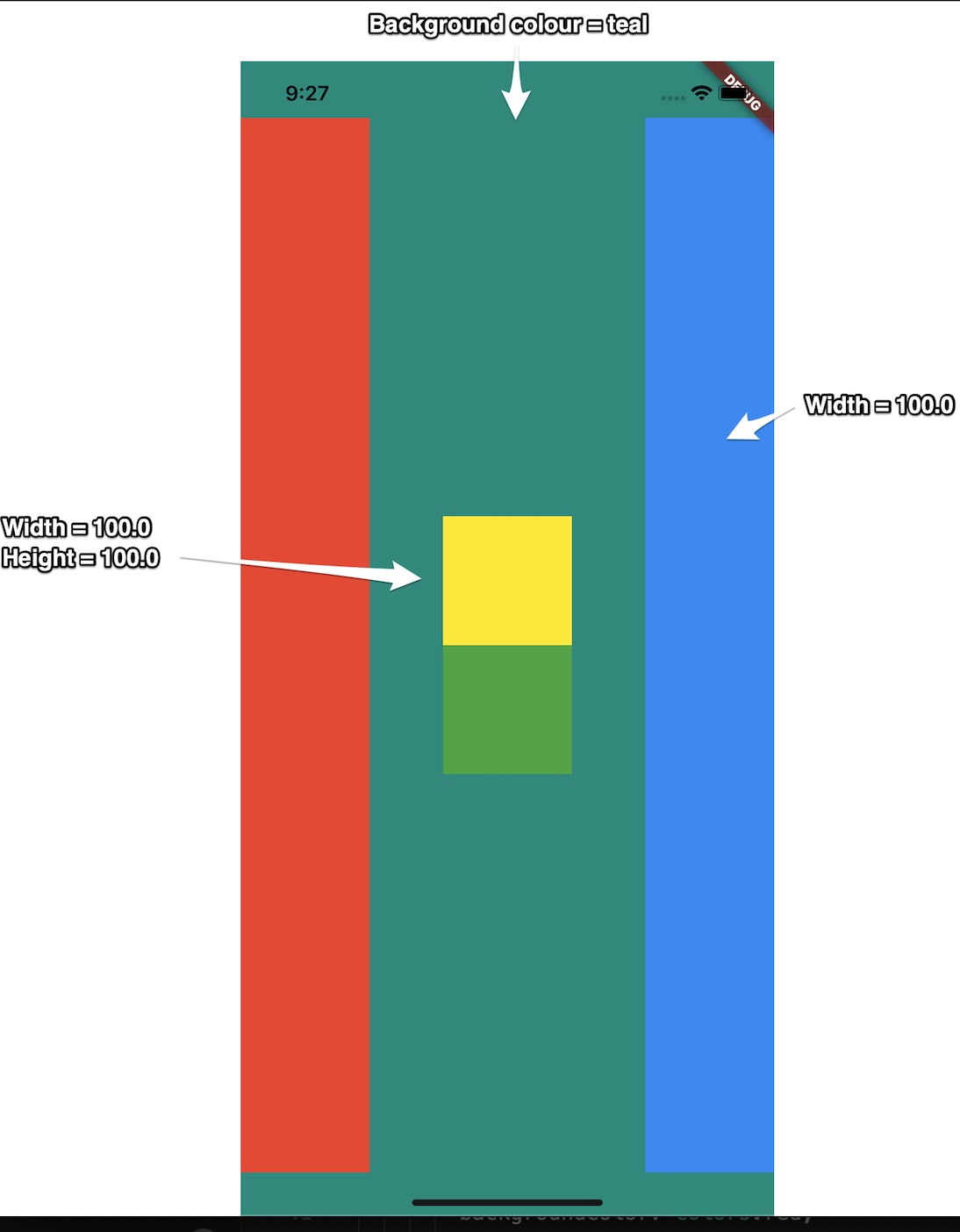

Flutter Layouts Challenge

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          // child: Column(
          child: Row(
            mainAxisAlignment: MainAxisAlignment.spaceBetween,
            crossAxisAlignment: CrossAxisAlignment.stretch,
            children: [
              Container(
                width: 100.0,
                color: Colors.red,
              ),
              Column(
                mainAxisAlignment: MainAxisAlignment.center,
                children: [
                  Container(
                    height: 100.0,
                    width : 100.0,
                    color: Colors.yellow,
                  ),
                  Container(
                    height: 100.0,
                    width : 100.0,
                    color: Colors.green,
                  ),
                  Container(),
                ],
              ),
              Container(
                  width:100.0,
                  color: Colors.blue,
              ),
            ],
          ),
        ),
      ),
    );
  }
}

load image/fonts

1
2
3
4
5
6
7
8
9
10
11
12
13
# kyp: add diamond image
assets:
# - images/diamond.png
  - images/

# kyp: add load font
fonts:
  - family: Pacifico
    fonts:
      - asset: fonts/Pacifico-Regular.ttf
  - family: Merriweather
    fonts:
      - asset: fonts/Merriweather-Italic.ttf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          child: Column(
            children: [
              CircleAvatar(
                // backgroundColor: Colors.red,
                // need add below
                // assets:
                //   - images/diamond.png
                // or
                //   - images/
                backgroundImage: AssetImage('images/diamond.png'),
                radius: 50.0,
              ),
              Text(
                  "Robert Kao",
                  style: TextStyle(
                    // kyp: add load font
                    fontFamily: 'Pacifico',
                    fontSize: 30.0,
                    color: Colors.white,
                    fontWeight: FontWeight.bold,
                  ),
              ),
              // down font from https://fonts.google.com/
              // font : Pacifico
              // create directory fonts then copy .ttf to
              Text(
                "FLUTTER DEVELOPER",
                style: TextStyle(
                  // kyp: add load font
                  fontFamily: 'Merriweather',
                  fontSize: 20.0,
                  color: Colors.teal[100],
                  letterSpacing: 2.5,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ],
          ),
        ),
      ),
    );
  }
}

Adding Material Icons with the Icon Widget

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          child: Column(
            children: [
              CircleAvatar(
                // backgroundColor: Colors.red,
                // need add below
                // assets:
                //   - images/diamond.png
                // or
                //   - images/
                backgroundImage: AssetImage('images/diamond.png'),
                radius: 50.0,
              ),
              Text(
                  "Robert Kao",
                  style: TextStyle(
                    // kyp: add load font
                    fontFamily: 'Pacifico',
                    fontSize: 30.0,
                    color: Colors.white,
                    fontWeight: FontWeight.bold,
                  ),
              ),
              // down font from https://fonts.google.com/
              // font : Pacifico
              // create directory fonts then copy .ttf to
              Text(
                "FLUTTER DEVELOPER",
                style: TextStyle(
                  // kyp: add load font
                  fontFamily: 'Merriweather',
                  fontSize: 20.0,
                  color: Colors.teal[100],
                  letterSpacing: 2.5,
                  fontWeight: FontWeight.bold,
                ),
              ),
              // icon list : https://fonts.google.com/icons
              // color palette : https://www.materialpalette.com/
              // color name : https://www.materialpalette.com/colors
              Container(
                color: Colors.white,
                margin: EdgeInsets.symmetric(vertical: 10.0, horizontal: 25.0),
                padding: EdgeInsets.all(10.0),
                child: Row(
                  children: [
                    Icon(
                        Icons.phone,
                        color: Colors.teal,
                    ),
                    SizedBox(
                      width: 10.0,
                    ),
                    Text(
                        "+44 123 456 789",
                        style: TextStyle(
                          color: Colors.teal.shade900,
                          fontFamily: 'Merriweather',
                          fontSize: 20.0,
                        ),
                    )
                  ],
                ),
              ),
              Container(
                color: Colors.white,
                margin: EdgeInsets.symmetric(vertical: 10.0, horizontal: 25.0),
                padding: EdgeInsets.all(10.0),
                child: Row(
                  children: [
                    Icon(
                      Icons.email,
                      color: Colors.teal,
                    ),
                    SizedBox(
                      width: 10.0,
                    ),
                    Text(
                      "robert@gmail.com",
                      style: TextStyle(
                        color: Colors.teal.shade900,
                        fontFamily: 'Merriweather',
                        fontSize: 20.0,
                      ),
                    )
                  ],
                ),
              )
            ],
          ),
        ),
      ),
    );
  }
}

Flutter Card & ListTile Widgets

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        backgroundColor: Colors.teal,
        body: SafeArea(  // kyp: put to save area
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              CircleAvatar(
                // backgroundColor: Colors.red,
                // need add below
                // assets:
                //   - images/diamond.png
                // or
                //   - images/
                backgroundImage: AssetImage('images/diamond.png'),
                radius: 50.0,
              ),
              Text(
                  "Robert Kao",
                  style: TextStyle(
                    // kyp: add load font
                    fontFamily: 'Pacifico',
                    fontSize: 30.0,
                    color: Colors.white,
                    fontWeight: FontWeight.bold,
                  ),
              ),
              // down font from https://fonts.google.com/
              // font : Pacifico
              // create directory fonts then copy .ttf to
              Text(
                "FLUTTER DEVELOPER",
                style: TextStyle(
                  // kyp: add load font
                  fontFamily: 'Merriweather',
                  fontSize: 20.0,
                  color: Colors.teal[100],
                  letterSpacing: 2.5,
                  fontWeight: FontWeight.bold,
                ),
              ),
              // add line
              SizedBox(
                height: 20.0,
                width: 150.0,
                child: Divider(
                  color: Colors.teal.shade100,
                )
              ),
              // icon list : https://fonts.google.com/icons
              // color palette : https://www.materialpalette.com/
              // color name : https://www.materialpalette.com/colors
              Card(
                // color: Colors.white, (default, so don't need)
                margin: EdgeInsets.symmetric(vertical: 10.0, horizontal: 25.0),
                // change Row to listTitle
                child: ListTile(
                  leading: Icon(
                      Icons.phone,
                      color: Colors.teal,
                  ),
                  title: Text(
                    "+44 123 456 789",
                    style: TextStyle(
                      color: Colors.teal.shade900,
                      fontFamily: 'Merriweather',
                      fontSize: 20.0,
                    ),
                  ),
                ),

                // class add pdding
                // child: Padding(
                //   padding: EdgeInsets.all(10.0),
                //   child: Row(
                //     children: [
                //       Icon(
                //           Icons.phone,
                //           color: Colors.teal,
                //       ),
                //       SizedBox(
                //         width: 10.0,
                //       ),
                //       Text(
                //           "+44 123 456 789",
                //           style: TextStyle(
                //             color: Colors.teal.shade900,
                //             fontFamily: 'Merriweather',
                //             fontSize: 20.0,
                //           ),
                //       )
                //     ],
                //   ),
                // ),
              ),
              Card(
                // color: Colors.white, (default, so don't need)
                margin: EdgeInsets.symmetric(vertical: 10.0, horizontal: 25.0),
                // change Row to listTitle
                child: ListTile(
                  leading: Icon(
                    Icons.email,
                    color: Colors.teal,
                  ),
                  title: Text(
                    "robert@gmail.com",
                    style: TextStyle(
                      color: Colors.teal.shade900,
                      fontFamily: 'Merriweather',
                      fontSize: 20.0,
                    ),
                  ),
                ),
              )
            ],
          ),
        ),
      ),
    );
  }
}

reference
